2.4GHz digital wireless camera backup system that mounts to Tractor, Combine, or Trailer

FOB Reference Price:Get Latest Price
1 Piece/Pieces one sample of wireless backup system is available (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Parking Sensor System
Voltage:
10-32v
Power:
5w
Car Make:
Tractor, Combine, or Trailer
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
VEISE
Model Number:
DF-723H2361
Warranty:
2 Years
Display Resolution:
800RGB(H) X 480(V) dot
Brightness (cd/m2)::
400cd/m2
Monitor scheme:
Techwell
Load Dump:
DC14+87V(Td400mS) 5pulses
Monitor function:
Built-in reverse short-circuit current protection
Auto dimming:
Yes
Shockproof:
10G
Waterproof:
IP69K
Horizontal Resolution:
500TV Lines
Certificate:
ISO/TS16949:2009,CE,FCC,E-Mark
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Week any quantity of wireless backup system is accept
Packaging & Delivery
Packaging Details
4pcs/carton carton size: 43*28*28cm, carton wegiht: about 12kgs
Port
huangpu
Lead Time :
within 3-5 days after receiving the payment

2.4GHz digital wireless camera backup system that mounts to Tractor, Combine, or Trailer

2.4GHz digital wireless camera backup system fits to many brands including: John Deere, Ford / New Holland, Case - International, Massey Ferguson, Kubota, Allis Chalmers, White / Oliver / Mpl Moline, Deutz, Yanmar, Gleaner, Steiger, Versatile, and more  .  Backup   auto    truck accessories camara
7"Digital Screen TFT LCD Monitor Built-in 2.4GHz Digital Wireless Receiver,Graphical menu
Image automatic cycle mode, night mode settings, reversing ruler settings, reversing the priority function is triggered;  truck accessories camara

500TV Lines  2.4GHz Digital Wireless Camera Aluminum Camera IP69K Waterproof and 10G Vibration



Digital Wireless Receive Monitor(Model:SP-723H2)
7" Digital Screen TFT LCD Monitor with Removable Sun Visor
Built in 2 CH 2.4GHz Digital Wireless Receiver
Operation Frequency:2400 ~ 2483.5MHz
Receiving Sensitivity:≤-86dBm(1MHZ QPSK MD300RE)
Overlapping Hopping Channel:80
Color System:PAL/NTSC
Display Resolution: 800RGB(H) X 480(V) dot
Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65
Brightness (cd/m2): 450
Contrast ratio: 500:1
Operating temperature: -20℃ to +70℃
Storage temperature: -30℃ to +80℃
Free Operating Voltage: DC10~32V
External dimensions:(L x W x T) (185X122X28mm) without mounting Sun Visor
Weight Approx: 400g
Digital Wireless Waterproof IR Camera(MODEL:DF-8275H-SFS)
Image Type: 1/3 inch Color CMOS
Built in 2.4GHz Digital wireless transmitter
Transmission Power:18dBm with Power control
Line of Sight Range:≤100M
Horizontal Resolution:500TV Lines
Effective pixel:NTSC:720(H)X480(V);PAL:720(H)X480(V)
Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
Free viewing angle: 120°
Waterproof: IP69K
Shockproof: 10G
Free Operating Voltage: DC10-32 Volts
Dimensions: 106(W) x 75(H) x 70.4(D) mm (without mounting)
Weight : 450g
Accessorie
U- Support Bracket,Angle Adjustment Screw,Removable Sun Visor,Electrical Connecting Cable,Antenna*3, Auto cigarette lighter,User's Manual

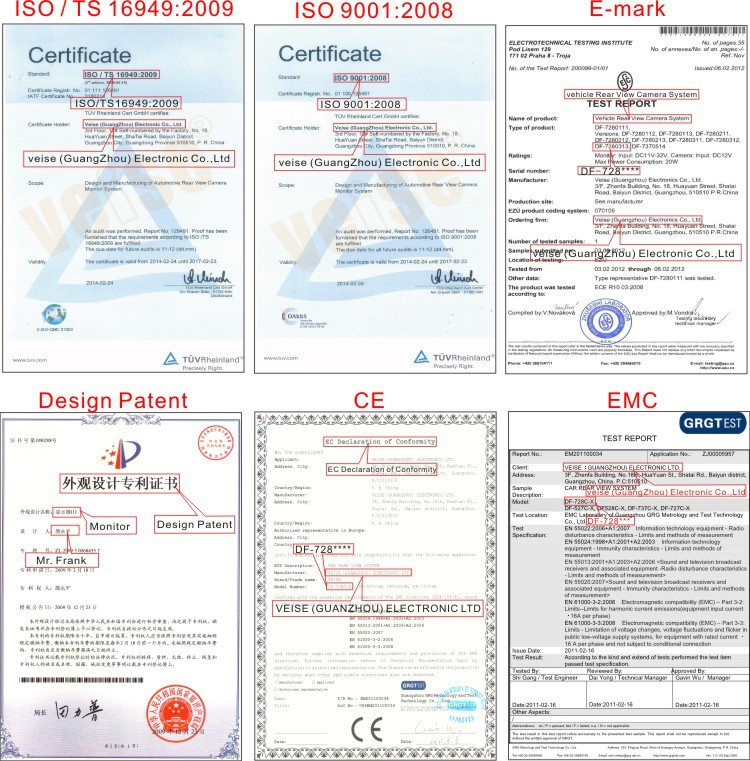

Certificates for Rear View System
